Connection Method of Flange & Clamp

1, Clean the flange sealing groove

2, Select the appropriate steel rim, apply grease, and place the steel rim into the sealing groove

3, Align the flange end faces and squeeze the steel rim

4, Insert the bolt and tighten it evenly by hand

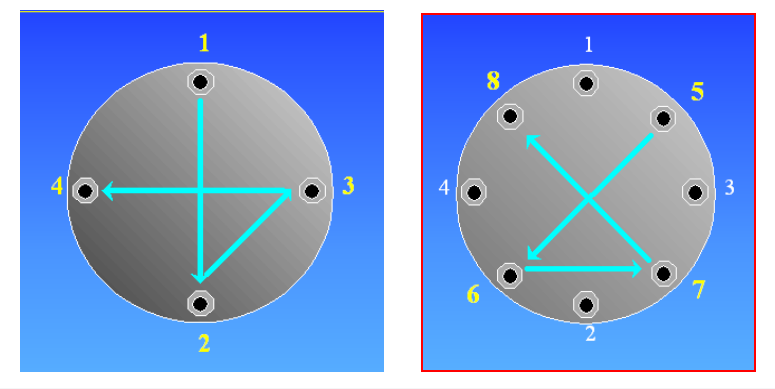

5, Use a hammer wrench to tighten the flange bolts in sequence twice

6, After the bolts are tightened, to make sure if there are 1 to 3 threads left, take good measures to prevent threads from sand and dust

7, When flanges are not in use, measures should be taken to prevent sand and dust

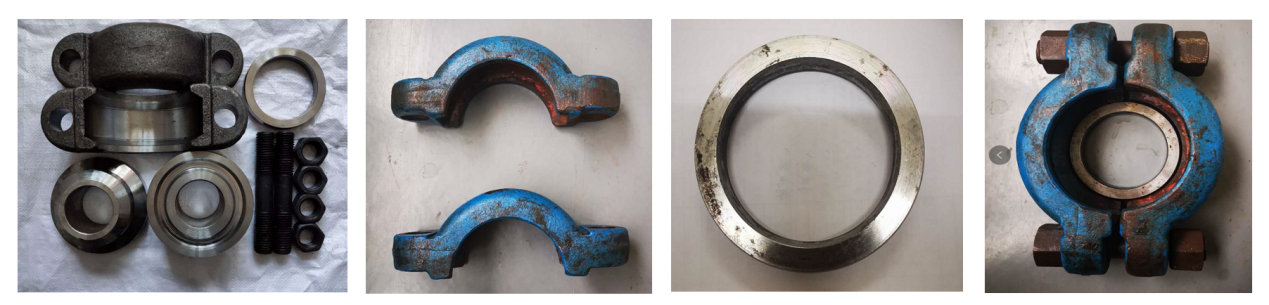

Connection method of clamp

1, Install the clamp head on the oil tube thread

2,Grease the steel rim and install it in the rim groove

3, Clamp the clamps together and fasten them with bolts
