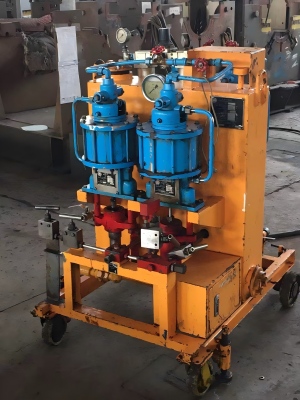

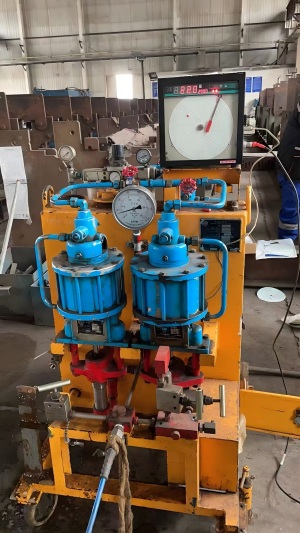

Pneumatic Pressure Test Unit 30000PSI

---

Application: Suitable for pressure and sealing performance tests of various connectors, valves, hoses, rigid pipes, pressure-bearing vessels (super-high pressure), and equipment.

Design Standards:

The pneumatic pressure test unit shall be designed and manufactured in accordance with:

Q/DSSY1-2022 “QST Series Pneumatic Pressure Test Unit”

API Q1 “Specification for Quality Management System Requirements for Manufacturing Organizations in the Petroleum, Petrochemical and Natural Gas Industry”

Maximum Working Pressure: 30,000 psi

Working Medium:Clean water

Ambient Temperature:0°C – 50°C

General Arrangement

All pressure pipelines and pneumatic–hydraulic components shall be installed inside a mounting frame, equipped with pneumatic control valves and pressure-indicating instruments.
The device mainly consists of the following components:

Oil Tank

Pneumatic–hydraulic pump #1

Pneumatic–hydraulic pump #2

Ultra-high-pressure Check Valves (2 pcs)

High-pressure Vibration-resistant Pressure Gauge

Air Supply Piping

One set of color-coded recording charts

Over-pressure protection device

Other required components

One (1) piece of Ø13 × 15m air hose

Three (3) pieces of Ø5 × 15m / 36250 PSI high-pressure test hoses

One (1) piece of 1" × 5m water hose

50m electrical wiring and cable rack

One set of spare parts

One set of sealing components

One set of special tools

English nameplates

Two (2) sets of documentation
