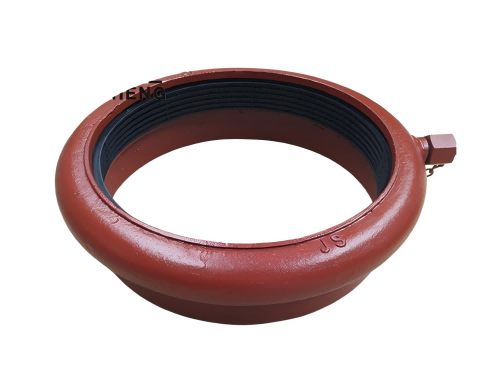

Pneumatic hammer unions are widely used in low-pressure, large-diameter, large-displacement, and frequently disassembled pipeline connections. They are especially suitable for all low-pressure, large-diameter pipeline connections between mud tanks in the drilling solid control system of the oil industry.

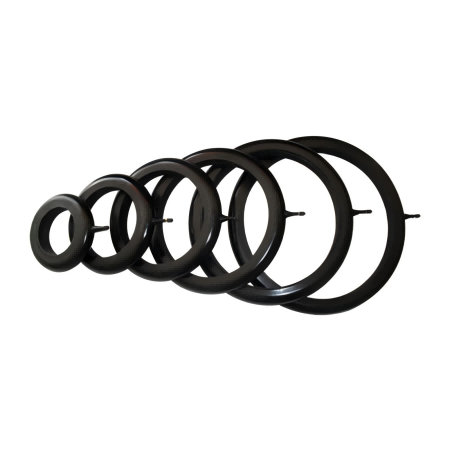

Product Structure：steel shell, pneumatic tire
Working Environment：-20℃ to +120℃
Working Medium: Drilling fluid(mud, oil, water and other acid and alkali substances)
Max. Sealing Pressure(fluid pressure in the pipeline): 0.4MPa
Recovery Time of Pneumatic Tire after Deflating: 1-3s
