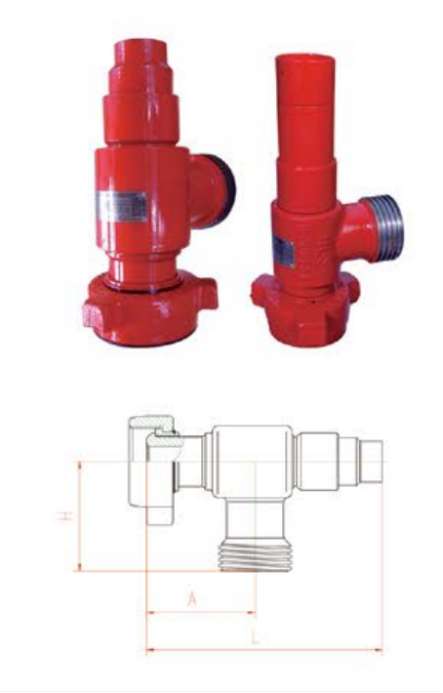

Safety Valve is a direct-acting self-reset valve, whose release mechanism is a spring-loaded ball and ball seat structure,
which automatically protects when the pressure exceeds the set value. The top adjustment bolt can adjust the release
pressure from 35Mpa to 140MPa. It can be installed on high-pressure fluid control pipelines with a maximum working
pressure of 105MPa or 140MPa, also can be used on reciprocating piston pumps, pressure vessels and other equipment
that require over pressure protection.
Design features
1.Union connection mode, convenient installation and disassembly;
2.Use spring to realize automatic opening and closing of the valve, without downtime, also with over pressure protection.
3.Unloading pressure can be adjusted.
