The plug valve is a low-torque plug valve series product developed through technological innovation based on the technology of SPM Company
from United States. The valve body is totally forged with high-quality alloy steel. The specifications are 1″ 2″, 3″, and the rated working pressure
grades are 5000PSI, 6000PSI, 10000PSI, 15000PSI, 20000PSI.
The connection method can be a hammer union connection or an internal thread (LP / TBG) connection. It can be used under normal,
low temperature, hydrogen sulfide (H2S) and other conditions.

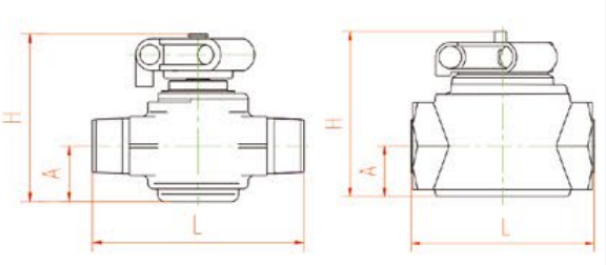

Plug valve with hammer union connection
Working Pressure：5000PSI ～ 20000PSI
Nominal Diameter：1″～ 3″
Temperature Rating：-29℃～ +121℃（PU grade）
-46℃～ +121℃（PL grade）
Application Condition: Standard, Lower temperature and environment with H2S
Manufacturing Standards：API 6A & NACE MR 0175

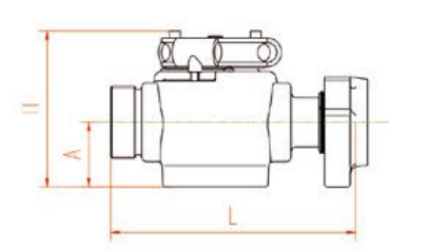

Plug valve with thread connection
Working Pressure：5000PSI ～ 10000PSI
Nominal Diameter：1″～ 3″
Temperature Rating：-29℃～ 121℃（PU grade）
Application Condition: Standard
Manufacturing Standards：API 6A
